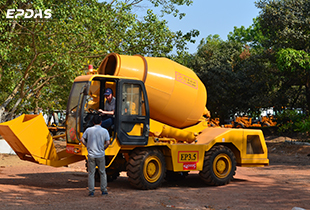

Integrated Chassis Self-loading Concrete Mixer
EP's integrated chassis self loading concrete mixer truck is an efficient mobile device that integrates concrete mixing, transportation, feeding, and unloading functions. Compared with traditional concrete mixer trucks, the integrated self loading mixer truck greatly improves construction efficiency by integrating multiple operational functions, and is widely used in small and medium-sized construction projects, road construction, bridge construction, and other occasions.
Production Types
Mixer Types
Name:
Self-loading Concrete Mixer
Chassis type:
Integrated Chassis
Concrete output:
2.5/3.5/4.0/5.5m3 per batch
Share With:
Self-loading Concrete Mixer
Features
Technical Info
Inquiry
Self-loading Concrete Mixer
Self-loading Concrete Mixer
Self-loading Concrete Mixer
Self-loading Concrete Mixer
Self-loading Concrete Mixer
Self-loading Concrete Mixer
Self-loading Concrete Mixer
Self-loading Concrete Mixer
Self-loading Concrete Mixer
Integrated Chassis Self-loading Concrete Mixer
  • Self-loading Concrete Mixer Excellent Design: Front cab and engine at the back to guarantee enhanced safety and comfort for the operator. Matched shovel loader with hydraulic door to prevent unwanted dispersion of the material. Fully automated system for ease of use, also suitable for inexperienced operators.
  • Self Mixing Concrete Truck High Efficiency: Load Cells electronic weighing system to ensure maximum accuracy in the production of concrete. Drum mixer rotating 270° to easily unload on the four sides of the off-road mixer (it turns all the way around the vehicle without it having to be moved). Small footprint requires less site space. 30% climbing slope capacity suitable all kinds of the roughly jobsite.
  • Self-loading Concrete Mixer Truck Strict Quality Testing: We test for hours every single unit twice before leaving out plant. Computer controlled manufacturing process.
Integrated Chassis Self-loading Concrete Mixer

The Benefits of Purchasing Integrated Chassis Self-loading Concrete Mixer Truck



EP regards quality as the lifeline of the enterprise and is committed to providing customers with the best quality products and services. Through strict quality management system and standardized production process, to ensure that each mixing station has been strictly tested, in line with high quality standards.



Transparent service process, customers can know the progress of the service at any time, enhance trust. Pay attention to customer feedback, and constantly optimize the service content and quality to better meet customer needs.



Provide professional technical support to ensure that the equipment maintains the best performance during use and reduces the occurrence of failures. Spare parts supply guarantee to ensure that your equipment gets the best support and protection to extend the service life.



Efficient integration to simplify work flow. The Self-loading concrete mixer consolidates the loading, mixing, transporting and unloading functions of concrete into a single vehicle, simplifying the equipment configuration on the construction site. Through this integrated design, the driver can directly operate the mixer to complete the entire operation process, without relying on multiple equipment, significantly improving work efficiency.



Self-feeding function, reduce manual operation. Self-loading mixer truck is equipped with advanced automatic loading system, which can automatically complete the loading task of aggregate, sand, cement and other raw materials, without external mechanical equipment such as loader, greatly saving labor costs and time.



Improve the quality of concrete mixing. The Self mixing concrete truck is equipped with a powerful mixing system to ensure that the concrete is always evenly mixed during transportation. This can effectively avoid the phenomenon of layering or segregation of concrete in the transportation process, and ensure the high quality of concrete.



Improve construction flexibility and mobility. Integrated chassis self-loading concrete mixer is designed not only for complex urban environments, but also for efficient operation on mountainous or rough roads. Its compact body design enables it to move flexibly in narrow construction sites, especially for urban construction or tunnel, bridge construction and other occasions.



Efficient transportation and synchronous mixing. The Self-loading mixer truck continuously mixes the concrete through the mixing bucket during transportation, avoiding the problem of curing or layering the concrete during transportation. This ensures that the concrete is always of high quality and can meet the stringent concrete quality requirements of various construction sites.



Adapt to a variety of complex road conditions. The Self mixing concrete truck has good off-road performance and can adapt to rough mountain roads, muddy work sites or uneven urban roads. No matter how complex the construction environment, the vehicle ensures the smooth completion of the concrete transportation and mixing tasks.





Parameters of Integrated Chassis Self-loading Concrete Mixer



Model EP2.5H EP3.5H EP4.0H EP5.5H
Mixing System Output capacity 2.5m³ per batch 3.5 m³ per batch 4.0 m³ per batch 5.5 m³ per batch
Rotation angle 270° 270° 270° 270°
Mixer Drum Angle 16 ° 16 ° 16 ° 16 °
Loader control Hydraulic 4 way stick
Swing Reducer Customized by EPDAS
Water Tank Volume 370 L 500 L 550 L 620 L
Engine Brand YUNNEI YUNNEI YUNNEI YUCHAI
Rated Power/RPM 76KW/2200RPM 85KW/2200RPM 92KW/2200RPM 110KW/2200RPM
Chassis Total Weight 6600 KG 8000 KG 8500 KG 9200 KG
Driver Type 4*4
Chassis Off-road-Integral frame
Wheel Base 1960 mm 2350 mm 2350 mm 2420 mm
Tyre 23.5-16 16/70-20 16/70-20 16/70-24
Transmission Full Hydraulic
Speed High:20-40 KM/H
Low:0-20 KM/H
Gradeability 30°
Overall Size L7040*W2530*H3200mm
(H4200mm)
L7500*W2700*H3380mm (H4760mm) L7600*W2800*H3380mm (H4760mm) L7820*W2850*H3400mm (H4780mm)
