HZS90 Container Concrete Batching Plant

EP containerized concrete batching plant is a kind of equipment that integrates the functional modules of the mixing plant into a container. Because it adopts a containerized design, the equipment is highly modular and convenient, occupies a relatively small area, and can be installed and dismantled quickly. It is widely used in railways, bridges, tunnels, water conservancy, ports, airports and other fields, especially suitable for construction sites that need to be moved frequently. It can not only improve construction efficiency and save time and costs, but also be a very popular concrete production equipment in modern construction projects.

Production Types

Mixer Types

Model：

HZS90

Productivity:

90m3/h

Central Mixer:

JS1500

Quote Now

Send E-mail

Share With:

Features

Technical Info

Inquiry

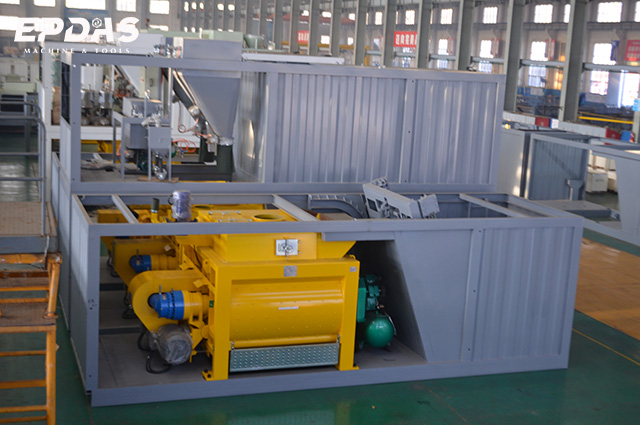

Containerized Concrete Batching Plant

Container-type concrete batching plant adopts a standard container structure and integrates the main functional modules of the mixing station, such as the mixing host, weighing system, conveying system, and control system, into an independent container. It is convenient to transport and assemble, which improves construction efficiency and equipment flexibility.
EP container concrete mixer plant is equipped with advanced mixing equipment and an advanced automatic control system. It can accurately control and monitor the mixing process and produce concrete quickly and efficiently, so as to ensure the stable quality of concrete and adapt to the needs of different project scales.
The dust collection and noise control system of the container ready mix concrete plant effectively reduces dust emissions and is equipped with sound insulation and shock absorption devices, which greatly reduces noise pollution and improves energy utilization efficiency, meeting the environmental protection requirements of the modern construction industry.
The standardized design of the modular concrete batching plant makes it easy to service and maintain. Most parts of the equipment can be disassembled or replaced individually. In the event of a failure, only the corresponding module needs to be replaced or repaired, which reduces maintenance complexity and downtime.

Modular Concrete Batching Plant

♦ The theoretical productivity of EP containerized concrete batch plants is 60m³/h-180m³/h. The theoretical productivity of HZS90 modular concrete plant is 90m³/h. It has high production efficiency and can meet the needs of large-scale construction.

♦ HZS90 Containerized Concrete Batching Plant, uses high-precision weighing equipment and sensors to automatically adjust batching errors to ensure batching accuracy. It is equipped with a forced twin-shaft mixer to ensure that the concrete is mixed evenly during the mixing process.

♦ The aggregate batching machine of HZS90 containerized concrete plant has a capacity of 3 bins*15m3 (optional). The batching system includes multiple high-precision aggregate bins, batching scales and other equipment, which is suitable for high-intensity and continuous production projects.

Model	HZS90X
Central Mixer	JS1500
Productivity	90m3/hr
Aggregate Batcher	3 bins*15m3
Aggregate Feeding Type	Lifting Bucket
Aggregate Diameter	≤80mm
Aggregate Weighing	±2%
Cement Weighing	±1%
Fly-ash Weighing	±1%
Water/Liquid Weighing	±1%
Mixing Power	55kw
Total Power	120kw
Overall Dimension	17m13m10m
Overall Weight	35t
Shape	Independent Container Module
