Home > Self-Loading Concrete Mixer > Integrated Self-loading Concrete Mixer > 4.0m³ Integrated Chassis Self Loading Concrete Mixer Truck

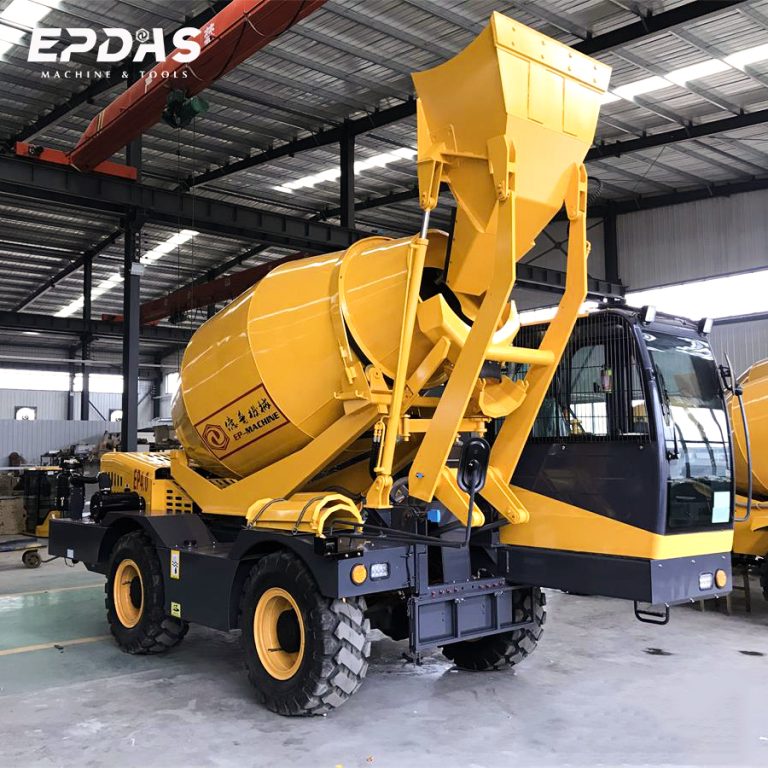

4.0m³ Integrated Chassis Self Loading Concrete Mixer Truck
4.0m³ integrated chassis self-loading concrete mixer truck is a highly efficient concrete mixing and transporting equipment with automatic loading, mixing, transporting and unloading of concrete. It adopts advanced integrated chassis design with compact and stable structure. With a large-capacity mixing capacity of 4.0 cubic meters, this mixer truck can meet the huge demand of concrete in large-scale construction sites and road construction. This mixer truck is suitable for various construction sites, such as residential, commercial buildings, bridges, tunnels, etc., and can provide efficient concrete mixing and transportation services.
Production Types
Mixer Types
Model:
EP-4.0
Chassis type:
Integrated Chassis
Output capacity:
4.0 m³ per batch
Share With:
Features
Technical Info
Inquiry
Self Loading Concrete Mixer Truck
Self Loading Concrete Mixer Truck
Self Loading Concrete Mixer Truck
Self Loading Concrete Mixer Truck
Self Loading Concrete Mixer Truck
Self Loading Concrete Mixer Truck
Self Loading Concrete Mixer Truck
  • EP self-loading concrete mixer truck integrates the functions of concrete mixing, loading, transportation and unloading, reduces the conversion time between multiple devices, has a high degree of automation, and realizes one-button operation through advanced control systems, reducing labor costs.
  • Self load mixer is equipped with a flexible unloading system, which can adjust the unloading angle and height as needed to ensure that the concrete can be accurately unloaded to the designated location. Meet diverse construction requirements.
  • The selection of high-quality materials and advanced manufacturing processes ensures that the concrete mixer structure is sturdy and durable. Equipped with a complete fault detection and early warning system, it provides protection for construction.
  • The mixing capacity of 4.0m³ self-loading concrete mixer can meet the large demand for concrete in large construction sites. The large-capacity mixer truck can ensure that the concrete is more uniform during the mixing process, reducing quality problems caused by insufficient or excessive mixing.
4.0m³ Self Loading Concrete Mixer Truck

♦ The EP chassis integrated self-loading concrete mixer truck series is divided into 2.5m³, 4.0m³, and 5.5m³. The model in the table has an output capacity of 4.0m³, which is the first choice for large-volume vehicles.



♦ The four-wheel drive system distributes the driving force reasonably, and the two-wheel steering system enables the mixer truck to easily cope with narrow construction environments.



♦ The hydraulic system uses high-quality hydraulic components and precise manufacturing technology, which can maintain stable working pressure and flow output under various complex working conditions, thereby ensuring the uniformity of concrete mixing.



Model EP-4.0
Total Weight 8500kg
Rotation Angle 270°
Mixer Drum Angle 16°

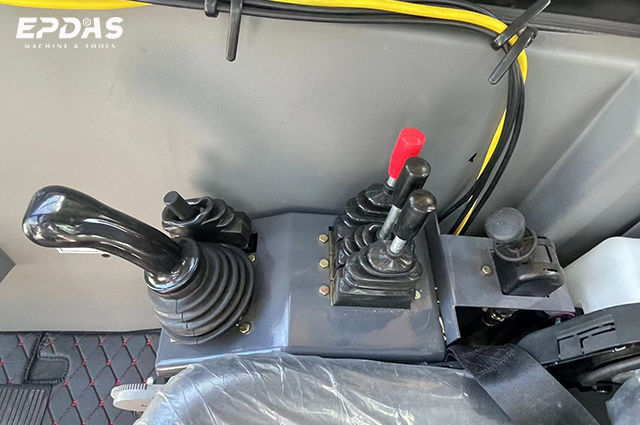

Loader Control Hydraulic 4 way stick

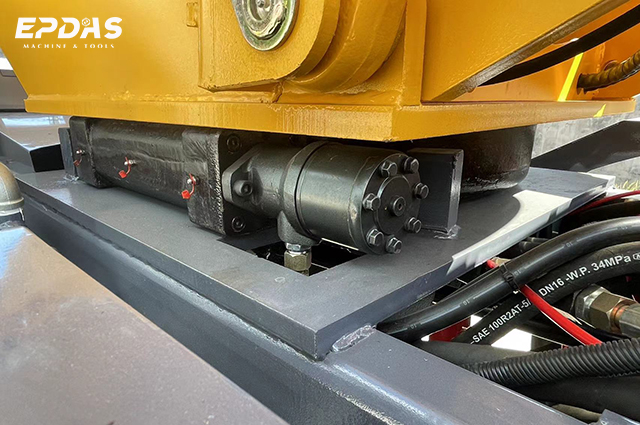

Swing Reduce Customized by EPDAS
Water Tank Volume 550 L
Engine YUNNEI
Engine Rated Power/RPM 92KW/2200 RPM
Chassis Articulated Vehicle
Wheel Base 2350 mm
Tyre 16/70-20
Transmission Mechanical
Grade-Ability 30°
Overall Size L7600*W2800*H3380mm
High Speed 20-40 KM/H
Low Speed 0-20 KM/H
