3.5m³Articulated Chassis Self-loading Concrete Mixer

EP 3.5m³ articulated chassis self-loading concrete mixer is a multi-functional concrete production equipment that integrates loading, mixing and transportation. The mixing drum has a capacity of 3.5 cubic meters and adopts an articulated chassis design. It has excellent passability and flexibility, and is suitable for construction in various complex working conditions and narrow sites, such as road construction, bridge construction, and residential construction. The mixer truck can automatically complete the loading, mixing and transportation of concrete, greatly improving the construction efficiency and quality.

Production Types

Mixer Types

Model:

EP3.5X

Output capacity：

3.5m³ per batch

Chassis type:

Articulated Chassis

Quote Now

Send E-mail

Share With:

Features

Technical Info

Inquiry

Self-loading Concrete Mixer Truck

The 3.5m³ articulated self-loading concrete mixer adopts advanced mixing technology and structure, which can complete the mixing of concrete in a short time. This equipment is equipped with an automatic loading system, which can automatically complete the loading of concrete, reducing the time and labor costs of manual loading.

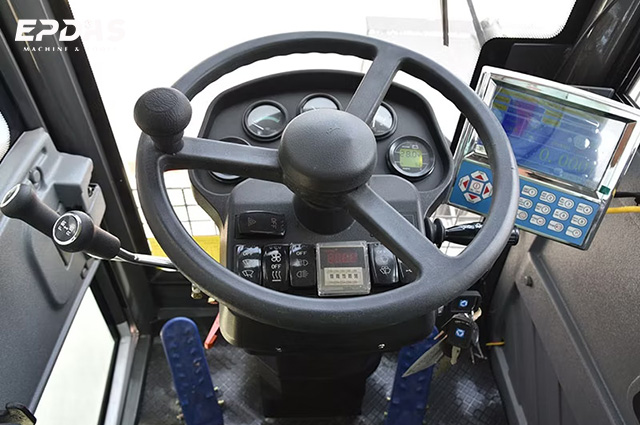

It is equipped with an intelligent control system, which can monitor the operating status and performance parameters of the equipment in real time, realize remote control and fault diagnosis, and improve the reliability and safety of the equipment. It is equipped with complete safety devices such as emergency brake system, anti-rollover device, etc. to ensure safety during construction.
The concrete mixer machine design makes it easy to handle rough terrain, including complex terrain such as mountains, hills, and deserts, ensuring smooth construction. Whether it's an urban construction site, rural road construction, or remote infrastructure construction, this equipment can meet your needs.
This self-loading concrete mixer machine uses high-quality mixing blades and wear-resistant materials to ensure that the concrete is mixed evenly, the quality is stable, and it meets the construction requirements. The whole is made of high-strength materials, which can withstand harsh construction environments and long-term wear and tear, and ensures the equipment has a long service life.

3.5m³ Self-loading Concrete Mixer

♦ The EP articulated self-loading concrete mixer series includes models with capacities of 1.6m³, 2.2m³, 3.6m³, and 4.0m³. The 3.5m³ model, featured in the table, is ideal for high-capacity applications.

♦ This mixer can achieve a top speed of 25 km/h and tackle a climbing gradient of up to 30°, making it suitable for a wide range of terrains. With a rotation angle of 270°, it offers excellent flexibility for concrete pouring.

♦ The large-capacity self-loading mixer is powered by a YUNNEI engine delivering 85 kW of output, ensuring robust performance. Additionally, water supply is managed by a hydraulic water pump for efficient operation.

Model	EP-3.5x
Total weight	8000 KG
Wheel Base	2350mm
Max.Travel Speed	25km/h
Gradeability	30°
Engine Brand	YUNNEI
Engine Power	85kw
Output Capacity	4.0m³
Rotation Angle	270°
Residual Volume	<0.8％
Hydraulic System	EATON
Swing Reducer	2 m³ customized by EP
Water Tan Volume	500 L
Water Supply Model	By Hydraulic Water Pump
