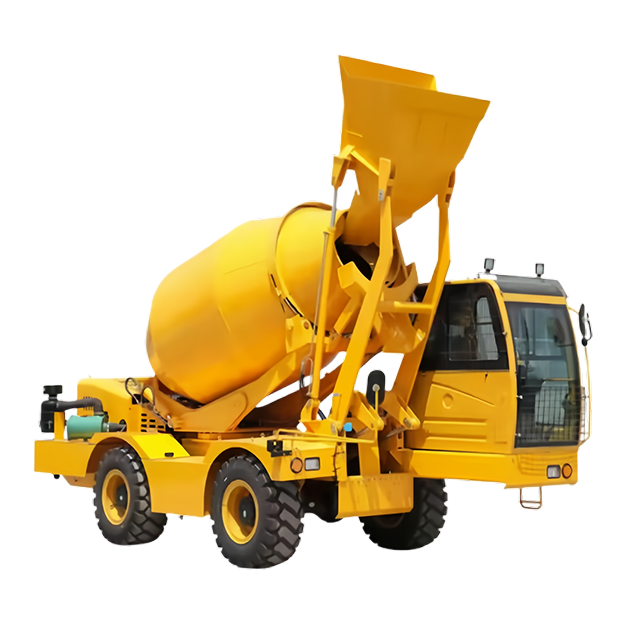

3.5m³ Integrated Chassis Self-loading Concrete Mixer
The 3.5m3 self-loading mixer is a concrete production and transportation equipment specifically designed for small and medium-sized construction projects. It boasts fully automatic functions, including loading, mixing, transportation, and unloading. With its flexibility and ease of operation, it is suitable for various construction sites. It is the ideal equipment choice for construction sites, rural roads, bridges, and other projects. It is suitable for most small and medium-sized projects and can quickly produce and deliver the required concrete without wasting materials and meeting the construction schedule. It is designed to be both compact and efficient, adaptable and easily accessible to narrow or complex construction sites.
Production Types
Mixer Types
Model:
EP-3.5
Chassis type:
Integrated Chassis
Total Weight:
8000 KG
Concrete output:
2.5/3.5/4.0/5.0m3 per batch
Share With:
Features
Technical Info
Inquiry
3.5m³ Integrated Chassis Self-loading Concrete Mixer
  • The body of the Integrated chassis self-loading concrete mixer truck is made of high-quality steel, with super durability and impact resistance, and can withstand long-term high load operation during construction. Compact body design, with good mobility, suitable for narrow or complex construction environment. The vehicle can easily pass through narrow laneways or worksites, which is especially suitable for the construction needs of small and medium-sized projects. At the same time, the compact design of the body is also easy to transport and store.
  • Four-wheel drive and all-terrain adaptation. The chassis of the mixer adopts four-wheel drive, which has excellent passability and stability, and can travel on various complex terrains such as mud, mountains and sand. The suspension system and tire design are optimized to ensure smooth operation on uneven roads.

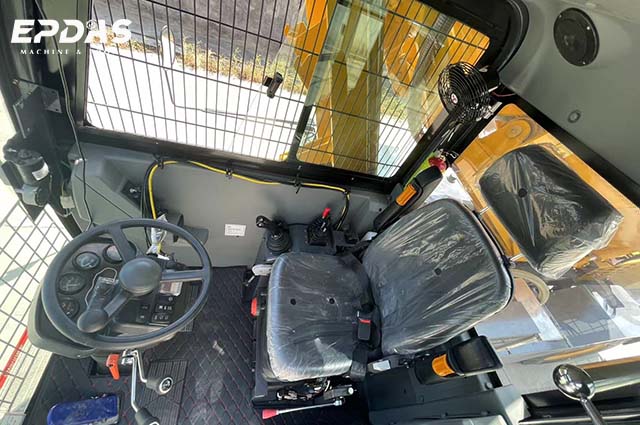

  • The ergonomically designed cab at the front of the body is spacious and comfortable, with Windows with panoramic views, giving the operator a clear view of the construction site. Equipped with an intelligent control system, the driver can easily control the loading, mixing and unloading operations of the vehicle through the touch screen and buttons.
  • The automatic loading arm is an important part of the self-loading mixer truck, responsible for lifting concrete raw materials (such as sand, cement, etc.) from the ground or storage area and loading into the mixing tank, through multiple hydraulic control joints, to achieve highly flexible loading operation.
3.5m³ Integrated Chassis Self-loading Concrete Mixer

The Benefits of Purchasing 3.5m³ Integrated Chassis Self-loading Concrete Mixer



EP regards quality as the lifeline of the enterprise and is committed to providing customers with the best quality products and services. Through strict quality management system and standardized production process, to ensure that each mixing station has been strictly tested, in line with high quality standards.



Transparent service process, customers can know the progress of the service at any time, enhance trust. Pay attention to customer feedback, and constantly optimize the service content and quality to better meet customer needs.



Provide professional technical support to ensure that the equipment maintains the best performance during use and reduces the occurrence of failures. Spare parts supply guarantee to ensure that your equipment gets the best support and protection to extend the service life.



Improve construction efficiency. Autoloading concrete mixer truck combines concrete mixing and loading functions toload, mix and transport concrete directly on the site. No additional mixing plant or material handling equipment is required, reducing the time for multiple transfers and making workflows on the site more efficient. Mixing, loading and transportation can be completed with a single device, greatly improving the speed and efficiency of construction.



Flexible and convenient on-site operation. The Self batching concrete truck is ideal for limited Spaces or hard-to-reach areas on construction sites. It can be mixed and loaded anywhere, especially in narrow urban sites where large concrete mixing plants are not available or in remote areas far from material supplies. The self-feeding function allows the operator to flexibly control the proportion of concrete and the mixing process according to the requirements of the site, ensuring the quality of each batch of concrete.



Reduce labor costs and workload. The Self loading cement mixer machine design allows the operator to perform mixing and loading tasks independently, reducing the need for additional labor. There is no need for multiple workers to handle and add materials, and the mixing and loading process is controlled by an automated system, which greatly reduces the complexity of manual operation and material handling, reduces labor costs, and reduces the work burden of workers.



Precise batching and high quality concrete. The Self batching concrete truck is equipped with an advanced batching system that precisely controls the ratio of cement, sand, stone and water to ensure that the quality of the concrete is always up to standard. With an automated batching and mixing control system, the quality consistency of each batch of concrete is ensured, improving the quality of construction and reducing the risk of rework due to inaccurate batching or concrete quality problems.



Save cost and improve economic efficiency. Autoloading concrete mixer truck reduces the use of multiple equipment and transportation costs in traditional operations by integrating multiple functions (loading, mixing, transporting) into a single unit. In addition, it can significantly reduce total project costs by reducing labor requirements and accelerating construction schedules. Its efficient mode of operation and flexible scope of use are especially suitable for use in multiple small construction projects or irregular construction sites, providing significant economic benefits.





Parameters Of 3.5m³ Integrated Chassis Self-loading Concrete Mixer



Model EP-3.5
Total Weight 8000kg
Rotation Angle 270°
Mixer Drum Angle 16°
Loader Control Hydraulic 4 way stick
Swing Reduce Customized by EPDAS
Water Tank Volume 500 L
Engine YUNNEI
Engine Rated Power/RPM 85KW/2200 RPM
Chassis Articulated Vehicle
Wheel Base 2350 mm
Tyre 16/70-20
Transmission Mechanical
Grade-Ability 25°
Overall Size L7500*W2700*H3380mm
High Speed 0-25 KM/H
Low Speed 0-9 KM/H
