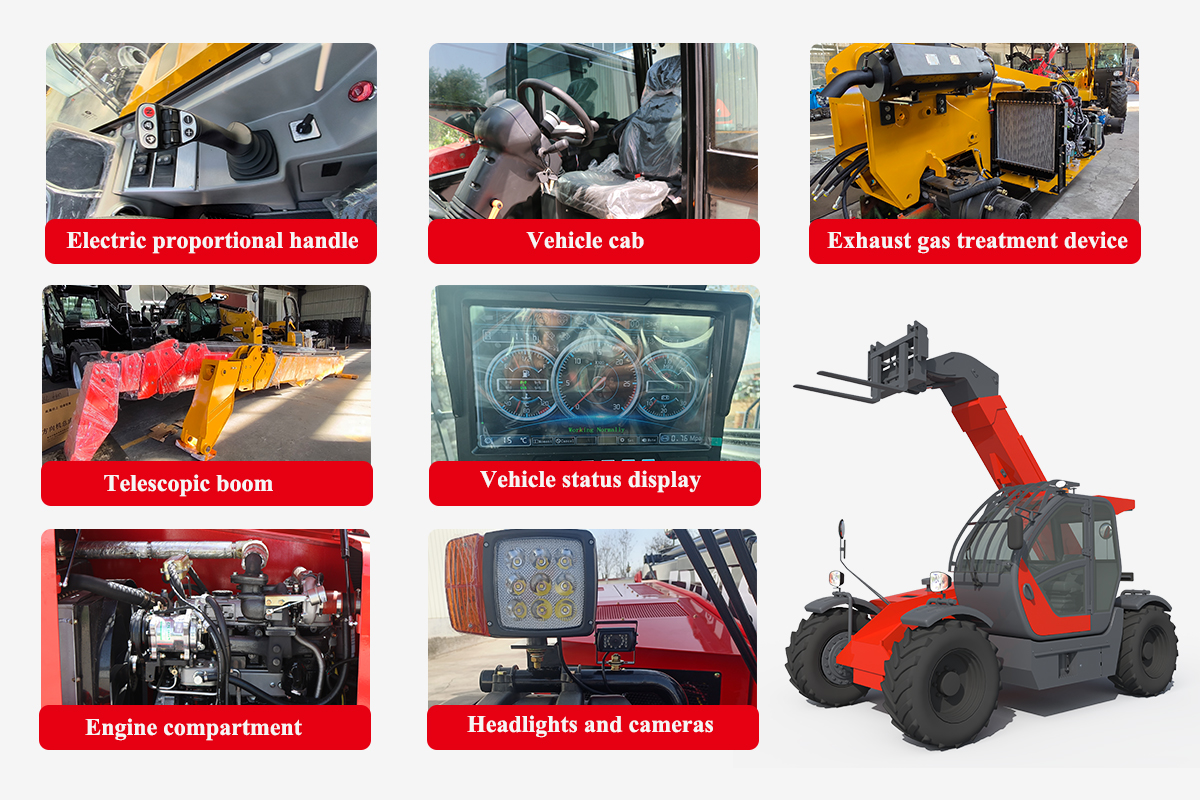

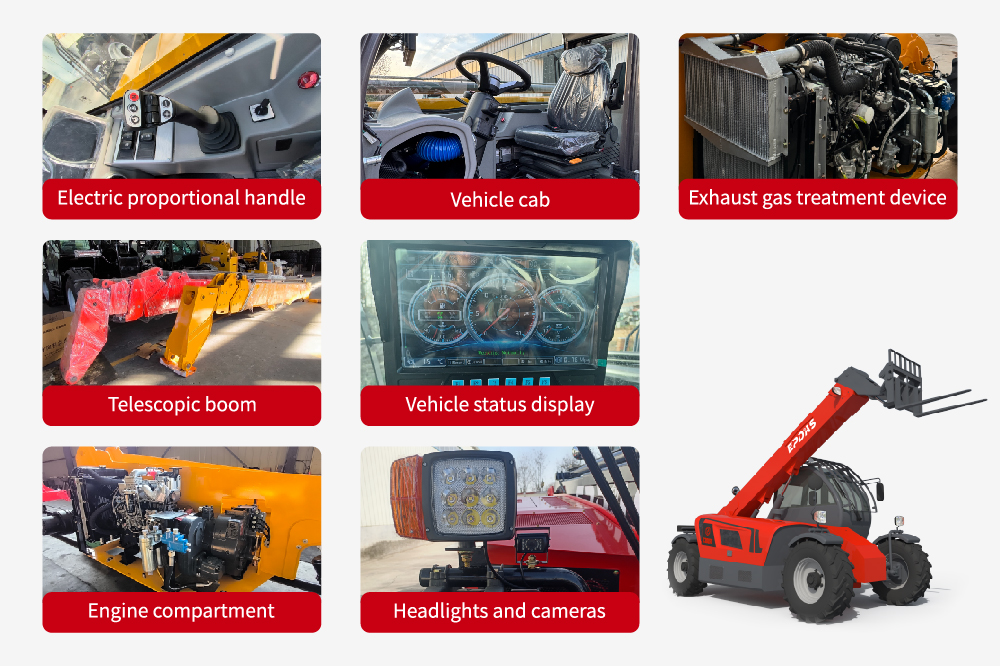

Main Components Of Construction Telehandler
Engine
The high-performance diesel engine provides strong power for the equipment, driving the forklift to realize precise horizontal movement, vertical lifting and other all-round operations. We select engines of well-known brands to ensure that the equipment can maintain high working efficiency under all kinds of working conditions.
Telescopic Boom
The telescopic boom is the core component of a telescopic boom forklift truck and is mainly used for lifting, extending and retracting loads. The telescopic boom is connected to the tilt arm and consists of multiple sections. The hydraulic system controls the extension and retraction of each section to realize long-distance operation.
Hydraulic system
The hydraulic system drives the lifting, lowering, extending and other actions of the telescopic boom through hydraulic pumps, hydraulic cylinders, control valves and other components, which is a powerful power source of the forklift truck and ensures the continuous operation of the system.
Cockpit
The cockpit is equipped with seats, electric proportional joystick, control panel, instrument panel, air-conditioning system and so on. The cockpit has a reasonable layout and all controls are within easy reach, providing a safe and comfortable driving environment for the operator.
Safety Equipment
The engineering telehandler is equipped with various safety devices such as anti-tip frame, load limiting system, anti-tilt system, front and rear images and sensors, window safety net, etc. to ensure the safety of operators.
Advantages of Rough Terrain Telehandler
An innovatively designed all-round tool
The Hyundai Rough Terrain Telescopic Forklift combines the advantages of both material handling and aerial work. By configuring modular attachments, including multi-functional buckets, fork sets, lifting booms and towing devices, it is capable of lifting goods, loading and unloading at sites, excavating foundations, and other operating scenarios. This kind of equipment has developed into a versatile player in the fields of engineering construction, farm operation, material storage and transportation and so on.
High performance perfectly adapts to complex working conditions
The new telescopic boom forklift has a significant advantage over traditional forklifts in terms of load-carrying performance, and can easily cope with the transfer of heavy materials such as steel components and prefabricated parts. The breakthrough four-wheel drive off-road system and strengthened chassis design ensure that the equipment still maintains excellent passability and operational stability in harsh environments such as muddy fields and gravel roads.
Intelligent control and all-round protection
It adopts humanized control interface and ergonomic driving space design, which greatly reduces the difficulty of operation. The intelligent safety protection system integrates real-time load monitoring, dynamic stability adjustment and panoramic visualization technology, providing three-dimensional safety protection for the operator and the work area.
How To Operate A Rotating Telehandler?
Inspection process before equipment startup
Before operation, the key components of the forklift need to be fully inspected: 1. tire pressure and wear condition 2. hydraulic pipeline sealing 3. telescopic arm mechanical structure integrity. At the same time, it should be confirmed that the driver’s seat belt locking function is normal, and each protective device is firmly installed. After completing the system self-check, connect the fully charged battery pack before starting the equipment.
Equipment Operation Specifications
Through the multifunctional control panel on the center console, precisely adjust the extension length and lifting height of the telescopic arm.
When operating, you need to keep:
1. Continuously observe the dynamic environment within the operation radius
2. Monitor the load balance status in real time
3. Keep a safe distance from the surrounding obstacles.
Cargo handling operation points
1. Positioning stage, fine-tune the fork spacing to match the cargo pallet.
2. Loading and unloading phase, maintain uniform linear motion, avoid sharp stops and starts.
3. Transportation stage, keep the telescopic arm at a safe height of 30-50cm above the ground.
4. Turning operation, when turning in restricted space, plan the route in advance, adopt the principle of “one stop, two look, three passes” to ensure the safety distance between the goods and the surrounding facilities.

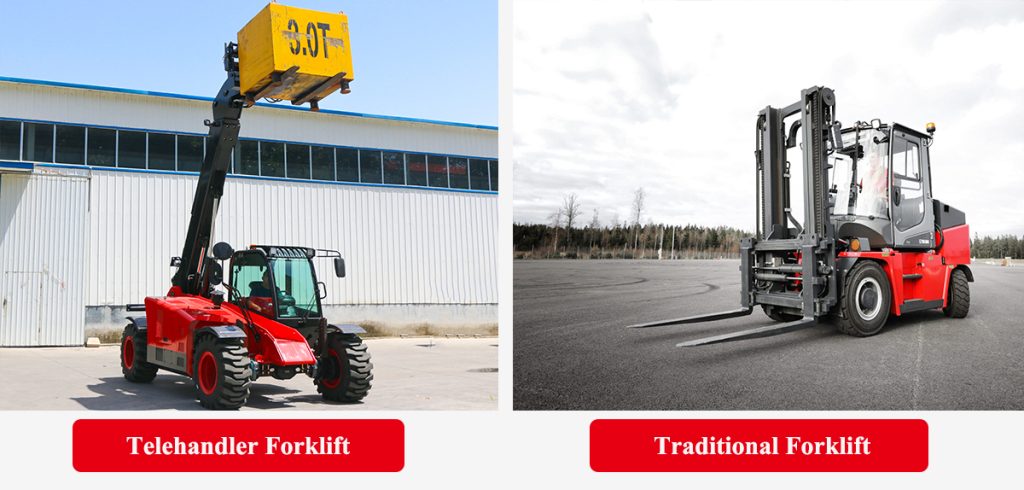

Traditional forklift & Telehandler : What’s the difference?
The core difference between telescopic forklift and traditional forklift lies in the structure and function – the former is equipped with a telescopic boom, which is able to work across obstacles and achieve higher lifting, and is applicable to a wider range of scenarios; while the latter adopts fixed forks, which are specially designed for narrow spaces, and is especially suitable for standardized handling in warehouses and logistics. When choosing, you need to combine with the actual needs: if you need to frequently handle heavy or oversized goods, and have high requirements for operational flexibility, telescopic forklifts are more adaptable to complex working conditions; on the contrary, in a flat and compact warehouse environment, efficient turnover of goods, traditional forklifts are both cost-effective and practical.

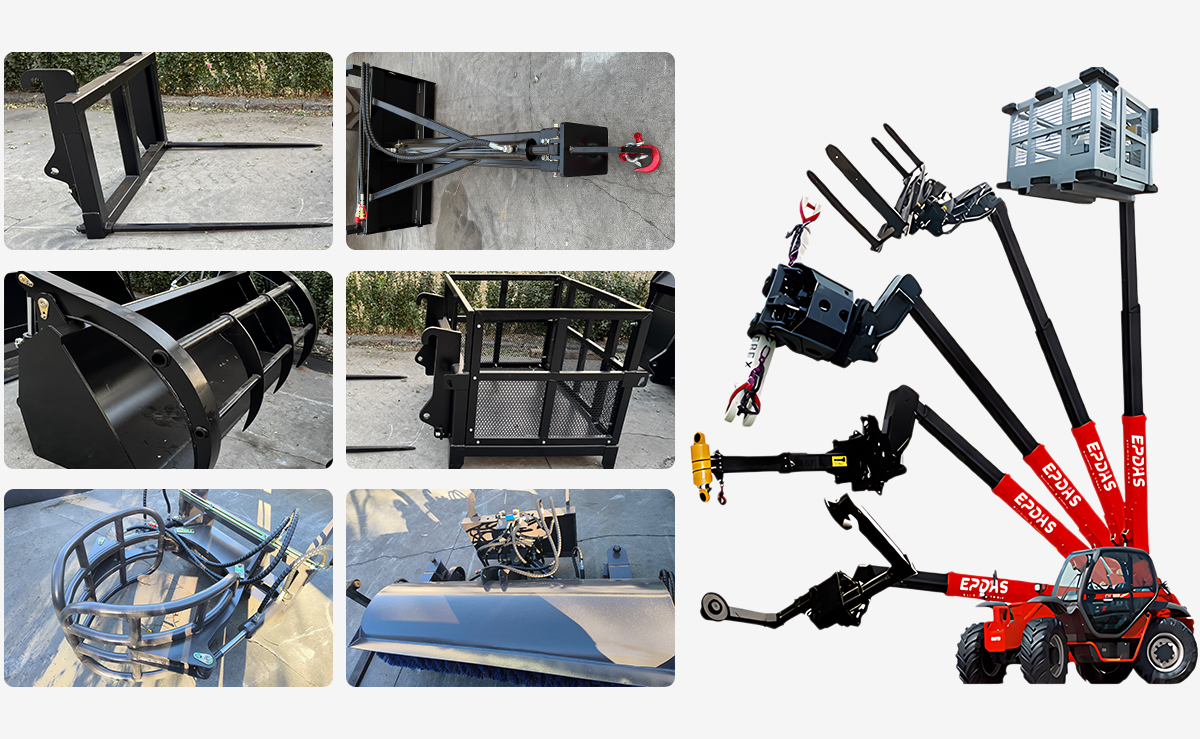

What Attachments Can Go on a Telehandler?
Telescopic forklift truck can be equipped with a variety of attachments. Common attachments include pallet forks, buckets, hooks, forklift forks, lifting platforms, etc. In addition, there are pipe clamps, augers, pushers, barrel clamps, tire clamps, etc. It can cope with various complex working environments and task requirements, and quickly replace different attachments according to actual operations, thereby improving work efficiency.
How to choose the right attachment for your work needs? First, clarify the specific needs and working environment of the operation, evaluate the complexity of the working environment, and select attachments according to the requirements of work efficiency and safety. The correct choice of attachments can not only optimize the work process, but also give full play to the versatility of the reach forklift.
How Much Is A Reach Forklift?
Telescopic forklift prices are affected by factors such as brand, model, load capacity, operating height and configuration. Our basic model small telescopic forklifts range from $30,000 to $50,000, and heavy-duty telehandlers range from $50,000 to $90,000. If you have purchase requirements, contact us today for a customized quote and recommendation!
Model | Price |
T3007-T3507-T4007 | $30,000-$50,000 |
T3510-T4010-T5010 | $45,000-$70,000 |
T4014-T4018-T5014-T5018 | $60,000-$90,000 |

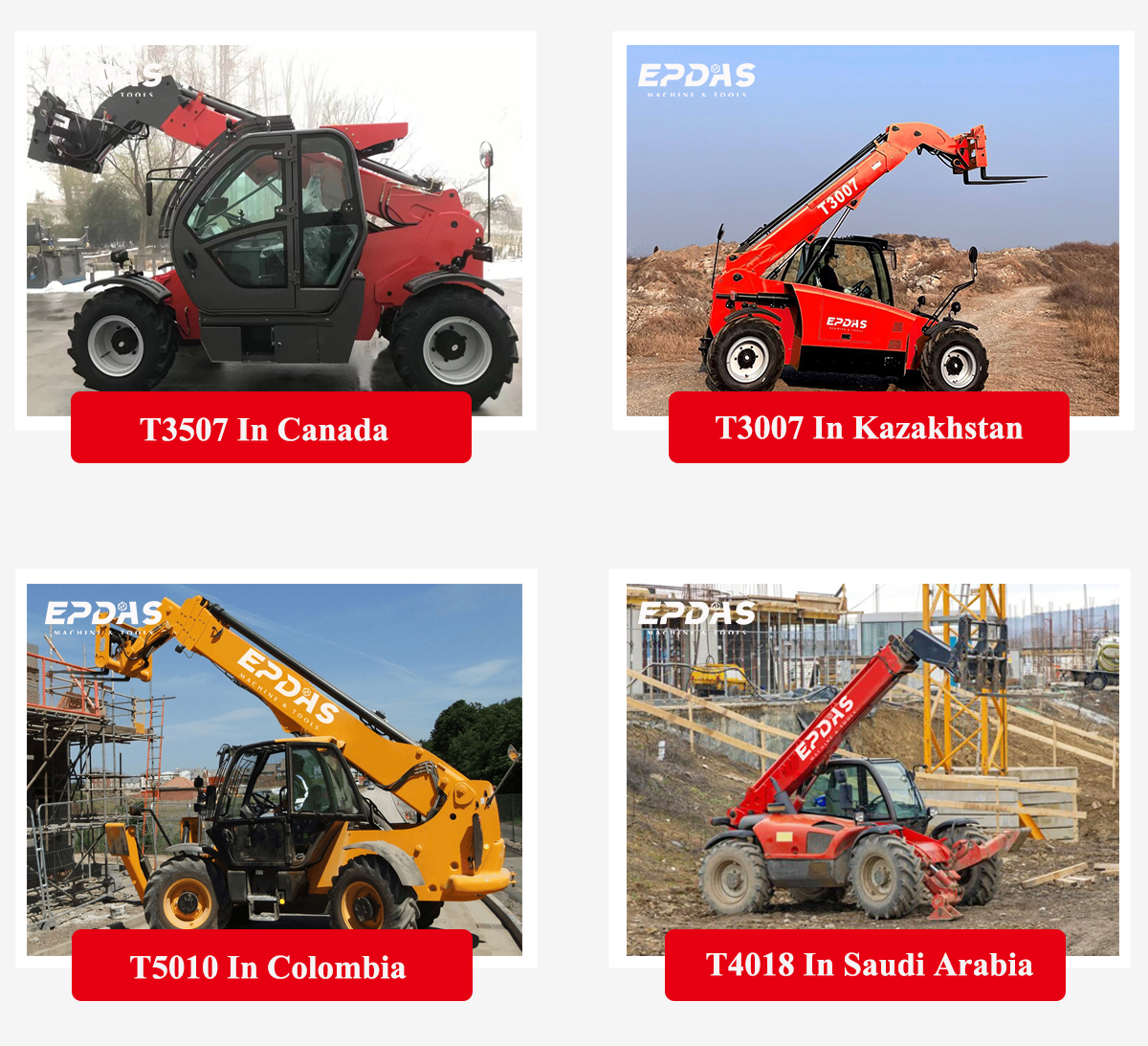

Cases Of Telehandler
EP construction telehandlers have been successfully shipped to many countries, demonstrating strong supply chain strength in the global market. With efficient delivery processes and strict control of all links, we ensure that all types of boom forklifts can be transported to customers quickly and safely, improving customer satisfaction and consolidating our position as a world-renowned telescopic forklift supplier.

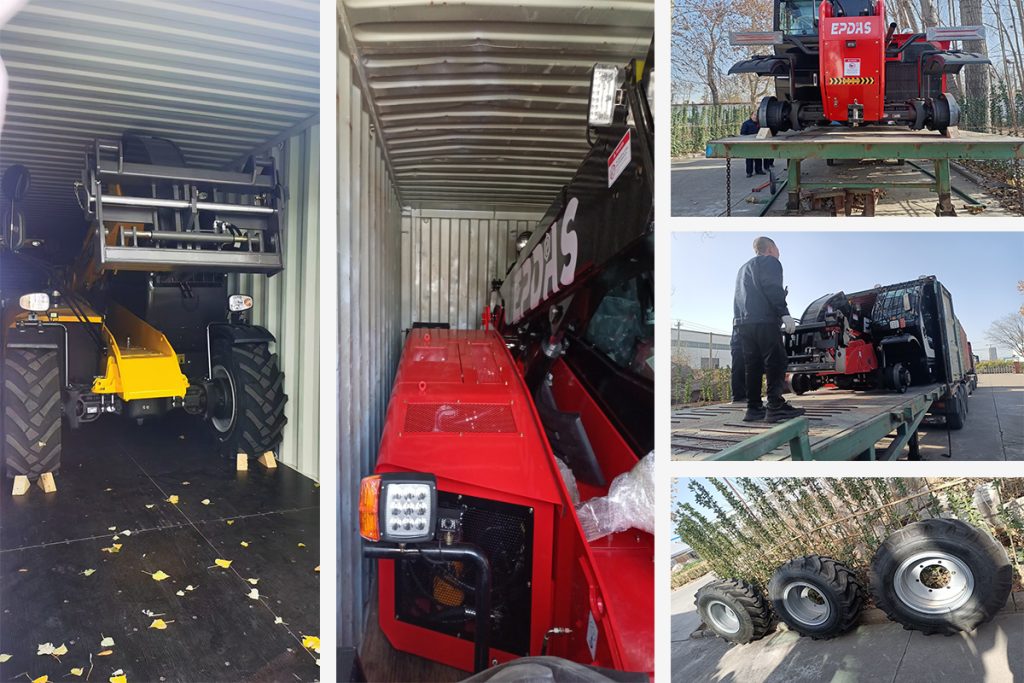

Packing & Delivery
Technical Data
Model | T3007 | T3507 | T5010 | T5014 | T5017 | T4018 |
Lifting height | Max. 7000mm | Max. 7000mm | Max. 9800mm | Max. 13800mm | Max. 16550mm | Max. 17550mm |
Load | Max. 3000KG | Max. 3500KG | Max. 5000KG | Max. 5000KG | Max. 5000KG | Max. 4000KG |
Engine Power | 76KW/106HP (Standard: YUNNEI) ● | 76KW/106HP (Standard: YUNNEI) ● | 91KW/122HP (Standard: YUCHAI) ● | 91KW/122HP (Standard: YUCHAI) ● | 97KW/132HP (Standard: COMMINS) ● | 97KW/132HP (Standard: COMMINS) ● |
Engine Power | 74KW/100HP (OPTION: CUMMINS) ○ | 74KW/100HP (OPTION: CUMMINS) ○ | EURO II | EURO II | EURO III | EURO III |
Engine Power | 61.3KW/83HP (OPTION: YANMAR) ○ | 61.3KW/83HP (OPTION: YANMAR) ○ | 400Nm @ 1400rpm | 400Nm @ 1400rpm | 600Nm @ 1500rpm | 600Nm @ 1500rpm |
Moment limiter | ○ | ● | 2 Sections | 3 Sections | 4 Sections | 4 Sections |
Driving Cab | Junior type ● | Junior type ○ | 4500mm | 7000mm | 9600mm | 9600mm |
Tires | Pneumatic-tires (16/70-20) ● | Pneumatic-tires (16/70-20) ● | Steel-wheel for Loading-container ● | Steel-wheel for Loading-container ● | Steel-wheel for Loading-container ● | Steel-wheel for Loading-container ● |
Max. Grade-ability | 25° | 25° | Auto Air-cut brake ● | Auto Air-cut brake ● | Auto Air-cut brake ● | Auto Air-cut brake ● |
Travelling speed | 28km/hr | 28km/hr | 30km/hr | 30km/hr | 25km/hr | 25km/hr |
Dimensions | 4650*2150*2300mm | 4730*2390*2485mm | 6400*2400*2550mm | 6430*2400*2550mm | 6500*2400*2790mm | 6500*2400*2790mm |
Self-leveling Forks | 1220*150*50mm (L*W*T) ● | 1220*150*50mm (L*W*T) ● | 1220*125*50mm (L*W*T) ● | 1220*125*50mm (L*W*T) ● | 1220*150*50mm (L*W*T) ● | 1220*150*50mm (L*W*T) ● |
