Concrete Screw Conveyor

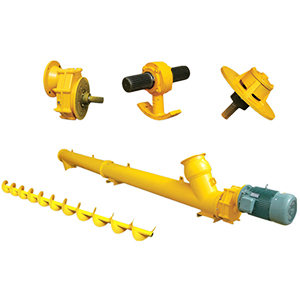

EP concrete screw conveyor is mainly composed of spiral blades, a trough and a drive device. It is a device used to transport bulk materials such as cement, fly ash, sand and gravel. It uses rotating continuous spiral blades to push the material into a closed tube. It can be transported horizontally, inclined or vertically to meet different transportation needs. It has strong adaptability and durability. The screw conveyor has a simple structure and is easy to operate. It can achieve an efficient and stable material transportation process. It is widely used in concrete mixing plants, building materials, chemicals, grain processing and other industries.
Screw Conveyor
Screw Conveyor

Working Principle of Cement Screw Conveyor



The core components of the  screw conveyor are the screw shaft, the screw blades and the closed shell. The concrete is conveyed from the feed port to the discharge port by the rotation of the screw blades. The motor drives the screw shaft to rotate through the reducer, and the screw blades rotate accordingly. The rotation of the screw blades generates axial thrust, pushing the material from the feed port to the discharge port of the conveyor. The closed pipe or U-shaped groove of the conveyor ensures that the material moves in the specified direction to avoid leakage, while reducing environmental pollution and material waste. By adjusting the speed and inclination of the screw blades, it can adapt to concrete of different consistencies.



Screw Conveyor



Working Progress of Concrete Screw Conveyor



Material feeding



The material enters the conveyor from the feed port, and the feed amount can be controlled by controlling the valve or frequency conversion speed regulation; in order to facilitate the smooth entry of the material, the feed port is located at one end of the conveyor, and the material is fed by the silo, mixing station, manual feeding or other upstream equipment.



Material conveying



After the motor is started, the screw shaft drives the blades to rotate, so that the material is thrust and moves forward continuously and steadily along the direction of the screw shaft. During the conveying process, in order to ensure uniformity, the material will also be subjected to a certain amount of stirring and mixing to avoid material accumulation or blockage.



Material unloading



After the concrete reaches the discharge port, it is discharged from the discharge port by gravity or a discharge valve. After discharge, it can enter the concrete mixer, hopper, storage bin, etc. In order to meet different construction needs, the discharge port is generally designed to be fixed or movable.



Screw Conveyor



Benefits of Concrete Screw Conveyor



Efficient conveying



Cement auger conveyor can realize continuous and stable conveying of concrete without interruption, ensuring the smoothness of the production process and improving production efficiency. It can be conveyed horizontally, inclined or even vertically, with great flexibility, and is suitable for large-scale concrete pouring projects.



Good sealing



The conveyor equipment adopts a closed trough design, which can realize fully enclosed conveying, avoid dust and material leakage, avoid material waste, and help reduce pollution to the environment. It is suitable for conveying harmful or dust-proof materials such as cement and fly ash.



Small footprint



Cement screw conveyor is mainly composed of spiral blades, troughs, drive devices, etc. It has a simple design, compact structure, long equipment life, and low maintenance cost; it can be flexibly installed according to site conditions when in use, and is suitable for construction sites with limited space.



Strong adaptability



Screw conveyor is not only suitable for conveying concrete, but also for conveying powdered, granular, blocky or semi-fluid materials such as sand, gravel, fly ash and grains. It can handle materials of different consistencies from dry hard concrete to fluid concrete, and is suitable for construction, chemical, food and agriculture and other industries.



Screw Conveyor



Packing & Delivery



Screw Conveyor



Technical Data



Diameter of outer pipe Diameter of inlet flange (mm) Height of inlet (H1) Height of outlet (H2)
0-20º >20-40º >40-50º 0-20º >20-40º >40-50º
A B C H1 H1 H1 H2 H2 H2
Ø 140mm 200 250 280 400 450 500 250 300 350
Ø 168mm 200 250 280 400 450 500 250 300 350
Ø 219mm 300 350 380 500 550 600 300 400 450
Ø 273mm 300 350 380 500 600 700 350 450 500
Ø 323mm 300 350 380 550 700 800 400 500 600
Ø 407mm 470 470 530 750 900 1000 450 600 700



Length Ø168mm Ø219mm Ø273mm Ø323mm Ø407mm
24t/h 40t/h 80t/h 110t/h 170t/h
2m 1500-5-28-4 1500-5-28-4 2000-7-38-5.5 2000-7-38-7.5 3000-10-42-15
3m 1500-5-28-4 1500-5-28-4 2000-7-38-7.5 2000-7-38-7.5 3000-10-42-15
4m 1500-5-28-4 1500-5-38-5.5 2000-7-38-7.5 2000-7-42-11 3000-10-42-15
5m 1500-5-28-4 1500-5-38-5.5 2000-7-42-11 2000-7-42-11 3000-10-42-15
6m 1500-5-38-5.5 1500-5-38-7.5 2000-7-42-11 3000-10-42-15 3000-10-48-18.5
7m 1500-5-38-5.5 1500-5-38-7.5 2000-7-42-15 3000-10-48-18.5 3000-10-48-18.5
8m 1500-5-38-7.5 1500-5-42-11 2000-7-42-15 3000-10-48-18.5 3000-10-48-22
9m 1500-5-38-7.5 1500-5-42-11 2000-7-42-15 3000-10-48-22 3000-10-48-22
10m 1500-5-38-7.5 1500-5-42-11 2000-7-42-15 3000-10-48-22 3000-40-48-30
11m 1500-5-38-7.5 1500-5-42-11 3000-7-48-18.5 3000-10-48-22 3000-40-48-30
12m 1500-5-38-7.5 1500-5-42-11 3000-7-48-18.5 3000-10-48-22 3000-40-48-30
13m 1500-5-38-7.5 1500-5-42-15 3000-7-48-18.5 3000-10-48-30 3000-40-48-30
14m 1500-5-38-7.5 1500-5-42-15 3000-7-48-18.5 3000-10-48-30
15m 1500-5-38-7.5 1500-5-42-15 3000-7-48-18.5 3000-10-48-30

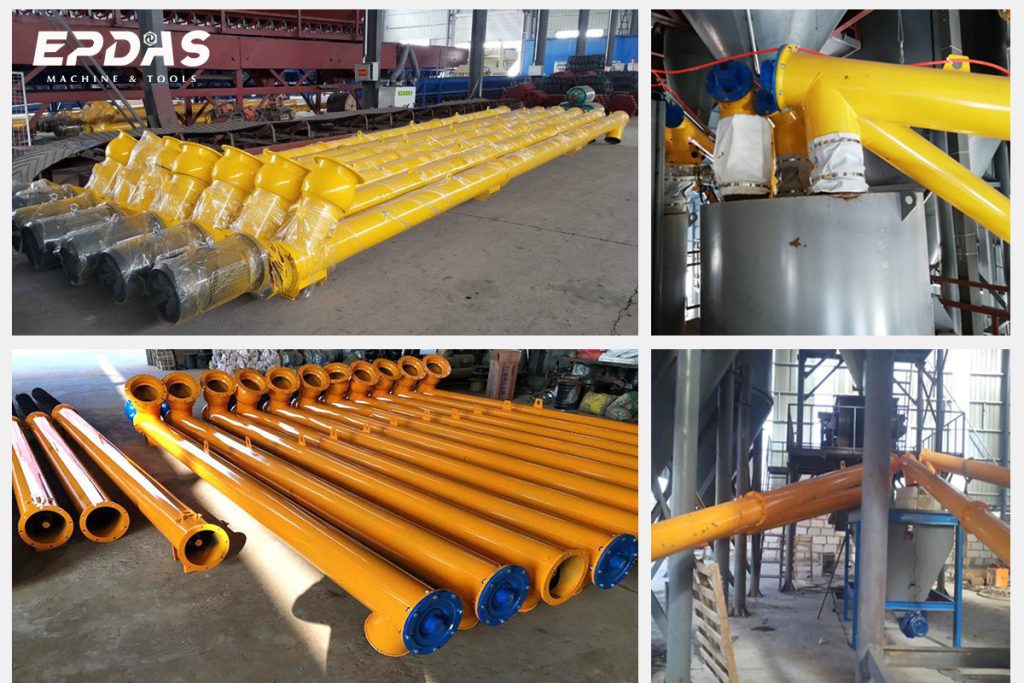

Screw Conveyor Manufacturer
Screw Conveyor Supplier

Professional manufacturing experience



EPDAS has a professional R&D team and advanced R&D facilities to continuously improve the performance and quality of its products. We have rich experience in the production and manufacturing of spiral conveying equipment, and can achieve large-scale production, reduce costs and improve production efficiency.



Brand reputation and word of mouth



We have a professional service team that can provide installation guidance, operation training, maintenance and other after-sales support. We can respond quickly when customers encounter problems and provide solutions. We have won wide recognition from customers through high-quality products and services.



Product quality and reliability



We adopt a strict quality control system, use optimized spiral blade design, and select high-efficiency energy-saving motors and reducers. Every link is strictly controlled to improve the conveying efficiency and make the operation more stable and reliable.

Applications of Concrete Screw Conveyor
Cement and building materials industry

In the building materials and cement industry, screw conveyors are used to transport building materials such as cement, gypsum powder, lime powder and ceramic powder. The screw conveyor is equipped with an anti-seepage device and can work normally on rainy days.

Food processing industry

Cement auger conveyor  is suitable for the transportation and processing of food, such as the transportation of grains, flour, feed and other food products. It is easy to operate and can ensure hygiene and safety, which is very suitable for production lines in the food industry.

Chemical industry

Screw conveyors are suitable for conveying chemicals such as plastic particles, chemical powders, pigments and calcium carbonate. They have good sealing properties and can effectively prevent material leakage and pollution.

Concrete batching plant

Concrete screw conveyor is a key part of the concrete mixing station. It connects the cement silo and the mixing host to transport the mixed concrete to the transport vehicle or pumping equipment to achieve automated production and improve concrete production efficiency.

Transportation industry

In the transportation industry, it is mainly used for port loading and unloading and logistics transportation, as well as horizontal and vertical transportation of bulk materials in warehouses, reducing loading and unloading time and achieving efficient transportation.

Power Industry

In the power industry, concrete Conveyor is used to transport materials such as fly ash and desulfurized gypsum, and is used for waste treatment in thermal power plants to reduce environmental pollution.

Metallurgy and Steel Industry

Screw conveyors can be used to transport materials such as iron powder, coke powder, metallurgical slag, etc., and are suitable for metallurgical enterprises such as blast furnace ironmaking, electrolytic aluminum plants, and steelmaking.

Food Industry

Concrete conveyor can be used to transport various food raw materials, semi-finished products and finished products, such as flour, sugar, milk powder and other food raw materials. It meets hygiene standards and can reduce the risk of pollution.

Prefabricated Component Factory

The screw conveyor can transport concrete into prefabricated component molds for material transmission in automated production lines. It can improve production efficiency and ensure component quality.
