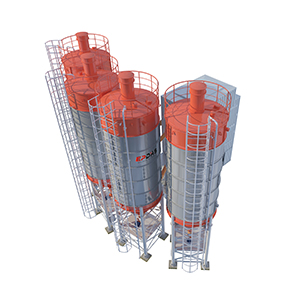

Vertical Cement Silo
Vertical Cement Silo
| Features | Vertical Cement Silo |
| Structure | Cylindrical structure, high height, usually about 8~15 meters, the bottom is a conical structure supported by four round tube legs; it is welded with steel plates and equipped with a pneumatic unloading device to ensure its corrosion resistance and reduce material waste. |
| Advantages | Small footprint, simple design, good rain and moisture protection, easy maintenance; large capacity, suitable for large-scale storage. |
| Disadvantages | High height, may be greatly affected by wind; transportation is limited and relevant procedures need to be handled, weighing system cannot be installed, and material weight cannot be accurately measured. |
| Installation and transportation | A foundation is required, and installation can only be carried out after the foundation is firm; height, width, and length are limited, and an overload permit is required for transportation. |
| Use Scenario | It is suitable for loading bulk cement and dry fly ash and other materials. It is mostly used in construction sites or concrete mixing plants that need to store a large amount of cement and have limited space. |
Horizontal Cement Silo
| Features | Horizontal Cement Silo |
| Structure | Square structure, the bottom is supported by several legs, the design is flatter, the overall height is relatively low; it is welded by a frame composed of corrugated board and profiles, easy to install and disassemble, and convenient for transportation. |
| Advantages | The height is low, suitable for occasions where vertical space is not considered. Equipped with a material level system and a weighing sensor, it can reflect the weight of cement in the silo in real time; it is flexible and recyclable. |
| Disadvantages | Compared with vertical silos, it may occupy more horizontal space and require a more spacious site; for occasions with large capacity requirements, multiple silos are required; maintenance and maintenance may be relatively frequent to ensure the accuracy of the sensor. |
| Installation and Transportation | Easy to disassemble and assemble, no foundation is required, and it is easy to transport. It can be transported by ordinary trucks. |
| Use Scenario | It is mainly used for mobile mixing plants and foundation-free concrete mixing plants, suitable for mobile mixing plants and frequently moved construction sites. |
How to install a cement silo?
Site Preparation
According to the model, capacity, and geographical environment of the portable cement silo, infrastructure construction must be done in advance. The depth of the foundation should not be less than 1200mm. If the installation location has soft geological conditions, the foundation area and depth should be increased according to the actual situation. The installation location needs to ensure that the cement silo can support the weight smoothly, while also ensuring good ventilation and transportation channels.
Transportation And Assembly
Transport each component to the installation site, use a dedicated crane to lift the cement silo, and assemble the various parts of the cement silo according to the steps. The vertical cement silo needs to be erected first, and then firmly supported; A horizontal cement silo needs to be placed horizontally and assembled with a support frame. After the cement silo is fixed in place, windproof cables must be installed, and the wire rope of the windproof cable should be greater than 10mm.
Unloading devices need to be installed at the bottom of the cement silo, and these devices need to be firmly connected to the bottom of the cement silo to ensure smooth unloading. Connect pipelines and electrical equipment to ensure smooth delivery of cement into the warehouse. Install electrical and automation control systems to monitor the storage and unloading of cement.
Inspection And Debugging
After installation, the entire cement silo system needs to be inspected; And conduct a trial run to check whether the unloading system is working properly and whether the flow of cement is smooth. The entire process needs to be operated according to strict standards to ensure the stable operation of the equipment and the safety of personnel.
How Much Is A Cement Silo?
Our cement silo integrates innovative design with excellent functionality, made of high-quality materials that are durable and can improve operational efficiency and environmental sustainability. Whether storing cement, fly ash, or other bulk materials, our products can provide reliable storage and transportation solutions to ensure the smooth progress of your project.
The cement silo price is influenced by various factors, such as their structure, storage capacity, and usage scenarios, resulting in price differences between vertical and horizontal cement silos; The size of the specifications is also an important factor affecting the price, and cement silos with larger capacity usually have higher prices. When making a purchase, it is necessary to consider your needs and budget comprehensively. Contact us for the latest quotation!
| Model | Price |
| Vertical cement silo | $5,000-$40,000 (30t~400t) |
| Horizontal cement silo | $7,000-$20,000 (30t~150t) |

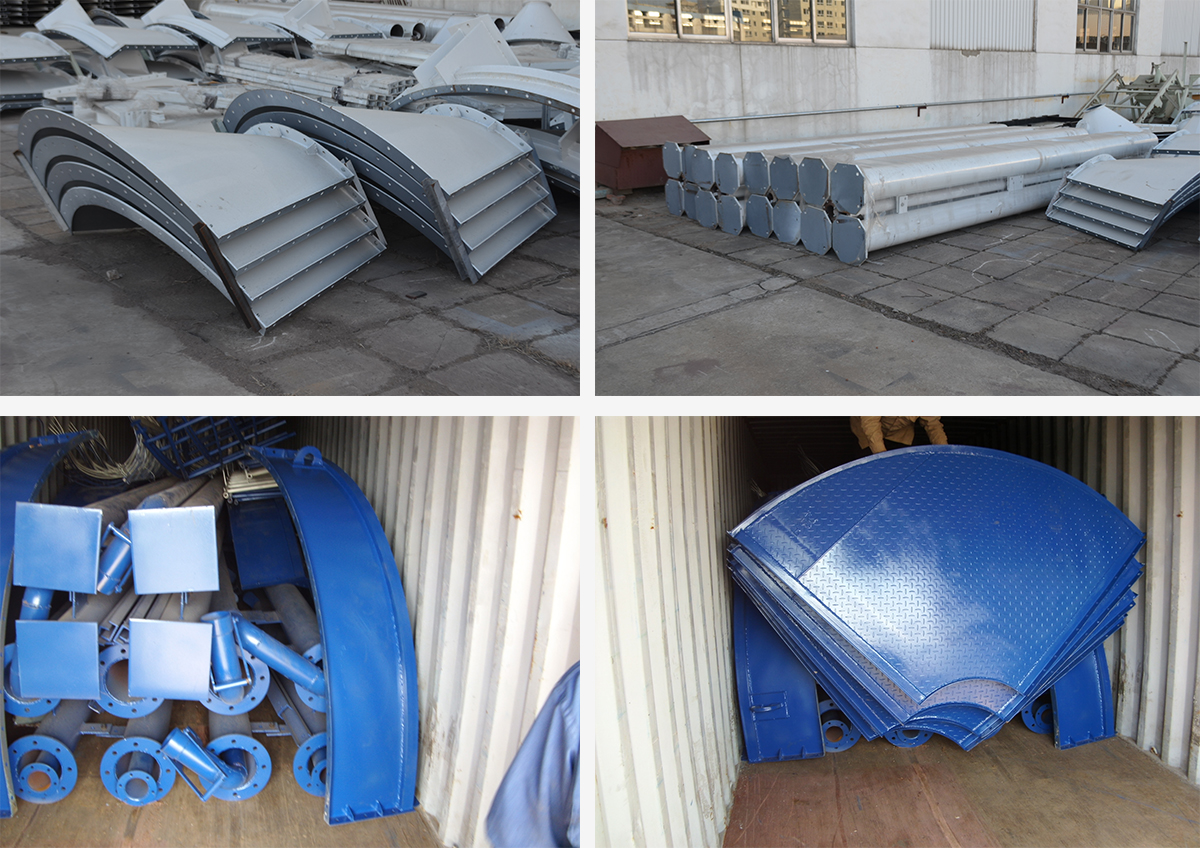

Packing & Delivery
Technical Data
Parameters of Horizontal Cement Silo:
| Capacity | Diameter of silo | Height of silo | Total Height | Assort with mixer | Assort with screw conveyor |
| 30T | Φ3m | 4.8m | 11.4m | JD350 | Φ140/Φ168 |
| 50T | Φ3m | 5.4m | 12m | JS500/JS750 | Φ168/Φ219 |
| 80T | Φ3m | 9m | 15.6m | JS750/JS1000 | Φ219 |
| 100T | Φ3m | 11.4m | 18m | JS1000-JS2000 | Φ219/Φ273 |
| 150T | Φ3.3m | 23.5m | 29m | JS1000-JS3000 | Φ273 |
| 200T | Φ4.5m | 18.6m | 25.2m | JS1500-JS3500 | Φ273/Φ323 |
| 300T | Φ4.5m | 24.6m | 29.5m | JS2000-JS4000 | Φ323/Φ407 |
| 500T | Φ6M | 22.2m | 28.8m | JS3000-JS6000 | Φ407 |
Parameters of Vertical Cement Silo:
| Capacity | Diameter of silo | Height of silo | Total Height | Assort with mixer | Assort with screw conveyor |
| 30T | Φ3m | 4.8m | 11.4m | JD350 | Φ140/Φ168 |
| 50T | Φ3m | 5.4m | 12m | JS500/JS750 | Φ168/Φ219 |
| 80T | Φ3m | 9m | 15.6m | JS750/JS1000 | Φ219 |
| 100T | Φ3m | 11.4m | 18m | JS1000-JS2000 | Φ219/Φ273 |
| 150T | Φ3.3m | 23.5m | 29m | JS1000-JS3000 | Φ273 |
| 200T | Φ4.5m | 18.6m | 25.2m | JS1500-JS3500 | Φ273/Φ323 |
| 300T | Φ4.5m | 24.6m | 29.5m | JS2000-JS4000 | Φ323/Φ407 |
| 500T | Φ6M | 22.2m | 28.8m | JS3000-JS6000 | Φ407 |
